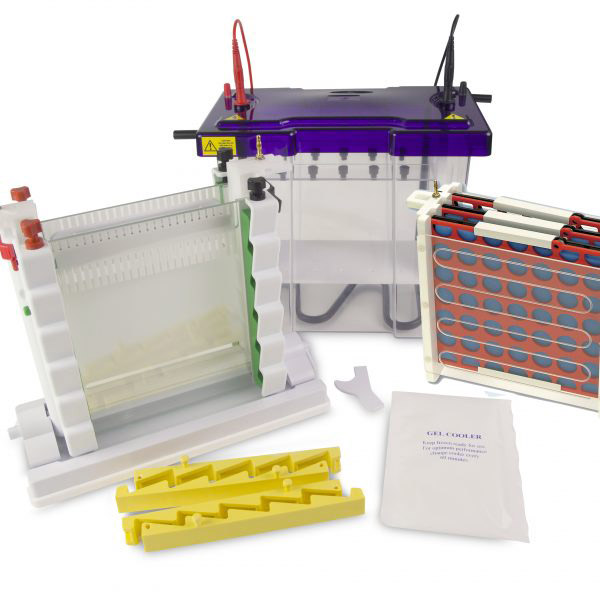

The VS20 WAVE complete electroblotting system provides all necessary components for performing transfers from vertical slab gels:
Interchangeable modular inserts combine vertical PAGE with electro-transfer using the same universal tank and lid
Multi-transfer capability for up to 4 WAVE Maxi gels, 8 omniPAGE Mini Wide and 16 omniPAGE Mini gels
Complete flexibility with power settings as experimental needs dictate: perform overnight transfer at voltages as low as 35V; and rapid, high-intensity transfers at 200V in 1-2 hours
Standard insert with platinum wire electrodes 8cm apart for increased capacity; and a high intensity insert with plate electrodes 4cm apart for transfer rapidity
Detachable cooling coil, which connects to the laboratory water supply or a recirculating chiller, prevents buffer depletion to allow overnight transfers and fast high-intensity blots, and maintains the low temperatures important for protein stability during native transfers
Open design, rigid cassettes maximise current transfer and eliminate shadow band formation
Colour-coded cassettes prevent polarity reversal
Package includes:
1x WAVE Maxi Vertical Unit which includes: PAGE insert, 2x4mm thick notched glass Plates, 2x4mm thick plain glass Plates with 1mm thick bonded spacers, 1x dummy plate, 2x combs (1mm thick 24 samples), 1x casting base, silicone mat, cooling pack
1x WAVE High Intensity Electroblotting Module which includes: WAVE Maxi Plate Electrode Blotting Insert, 1x compression cassettes and 6x fibre pads
